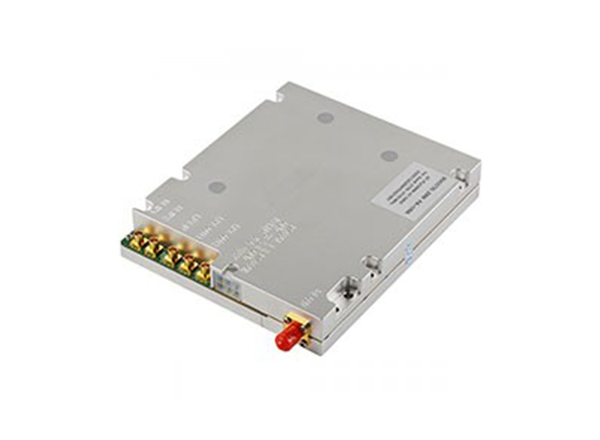

VHF 150MHz Superlinear RF Power Amplifier Modules For BDA / IMSI Catcher

ATHRPG162M-24-35/50N1

Video

Product Description

Action Amplifiers are suitable for frequency bands ranging from 20MHz to 6GHz, the output power can be customized from 1 Watts to 200 Watts. The amplifiers utilize the cutting edge Solid-State technologies, such as GaN, LDMOS, with multi-measures, such as advanced broadband RF matching networks and combining technologies(Doherty design), then provide exceptional performance with high gain, high efficiency, wide dynamic range, low distortions, and good linearity. The amplifiers have a variety of applications including Aerospace, Military, Radar, Electronic Warfare, Communication system(Repeater/BDA,RF Jammer, IMSI catcher), SATCOM, EMI/RFI testing, Lab test and measurement, PIM testing and so on. Action Technilogies’s ISO9001:2015 quality management system assures consistent performance, high reliability and ruggedness.

Feature

Solid-state Class AB design
High gain and high efficiency
High input/output isolation
Ultra-wide band
Compact design and lightweight
Built-in protection and monitoring circuits

Application

Technical Specification

Items	Specifications
Frequency Range	450~470MHz
Bandwidth	20MHz
Output Power	38±1dBm
Max Gain	45±1dB
Gain Adjustment Range	≥25dB@1dB Step
Gain Adjustment Error	≤±1.5dB
ALC	≥10dB
In-Band Ripple	≤1.0dB
IMD	≤-60dBc@2tone(200KHz Space)x35dBm
Spurious Emission	≤-36dBm/9KHz-1GHz
	≤-30dBm/1GHz-12.75GHz
Maximum Input Power	0dBm
Input/Output VSWR	≤1.5
Working Voltage	DC+28V
Working Current	≤2.5A
RF Connector	2XSMA Female
Power Supply and Monitoring Interface (7W2 Male Interface)	Pin 1 Corresponds to RS485 Serial Port A; Pin 2 Corresponds to RS485 Serial Port B; Pin 3 Correspond to GND; Pin 4&5 Corresponds to NC; A1 Corresponds to DC28V; A2 Corresponds to GND;
Impedance	50Ω
Working Temperature	-25℃~+55℃

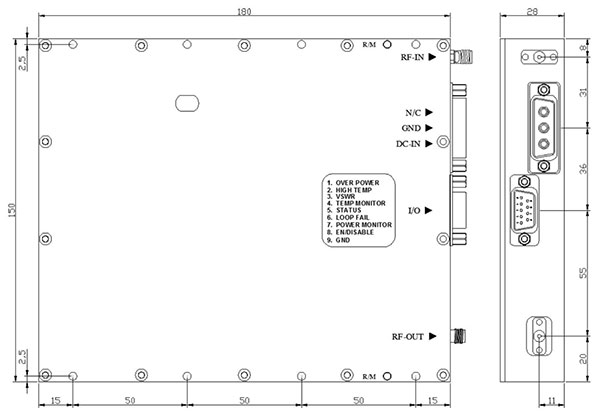

Dimension	18015028mm
	1.Overpower Alarm	Po=+39.5dBm±1dB / Shutdown High
	2.High Temp. Alarm	High (Shutdown) / Low (Normal) Alarm & Shutdown : Higher than +90℃ Auto Recovery : Lower than +70℃
	3. VSWR Alarm	High (Alarm) / Low (Normal) / 27dBm (Output Open)
	4. Temp. Monitor	Vo = (T / 100) + 500mV
	5. LPA Status	High (Inactive), Low (Active)
	6. Loop Fail Alarm	High (Shutdown) / Low (Normal)
	7.FWD Power Monitor	4.0V@Po=+35dBm, 0.1V/dB
	8.Enable/Disable	High (Disable) /Open & Low (Enable)
	9.GND	Ground
DC Fail Alarm (DC Fail Alarm function is integrated)	<19V or >31V:Shutdown 21V~29V: Auto Recovery
Power Specification	3W3P Male Connector A1:+27V,A2:GND,A3:NC
