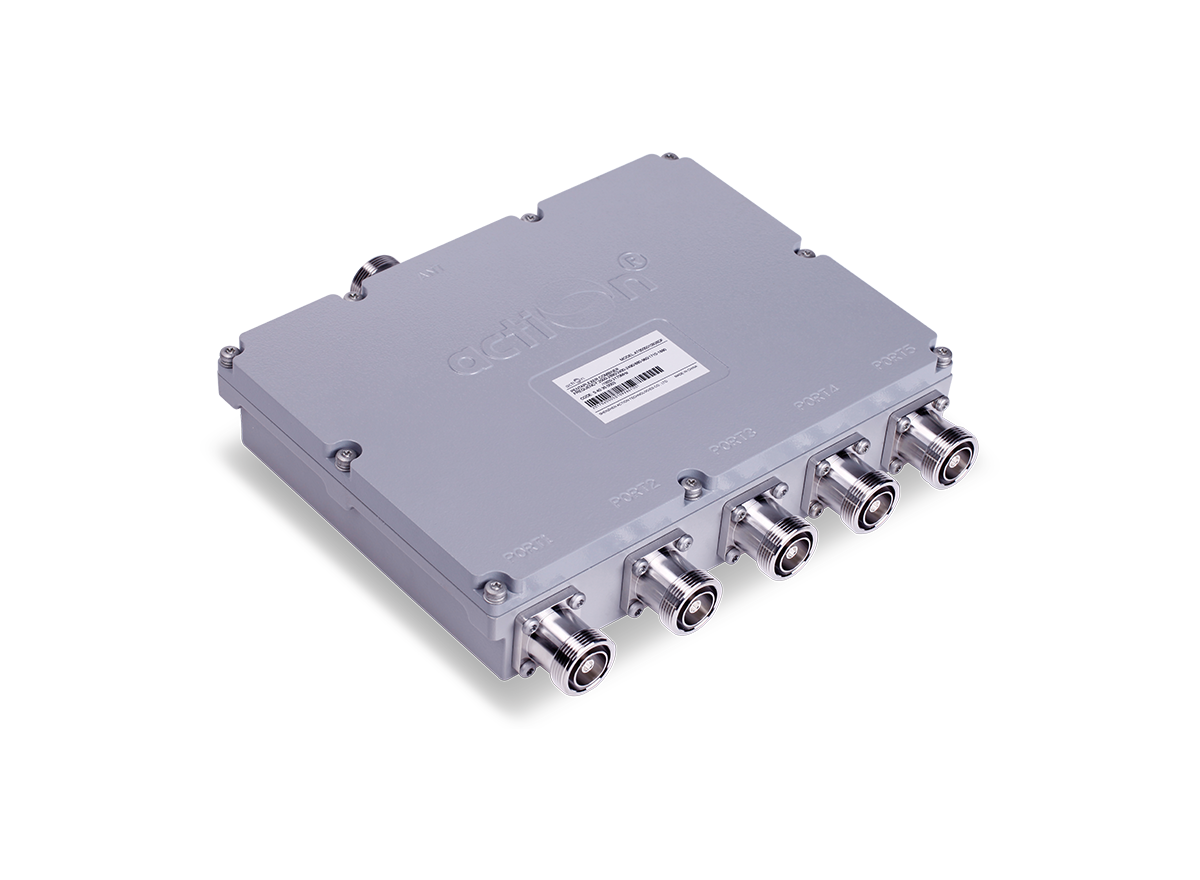

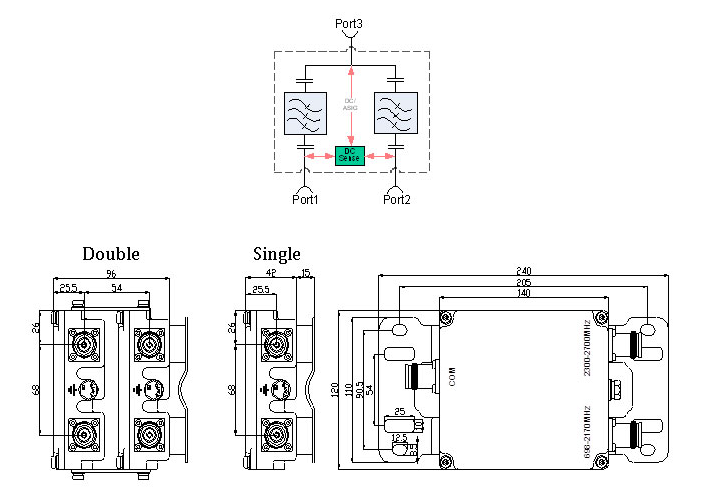

Schematic Diagram and Outline drawing:
| Type | 4Ports In- 2Ports Out(Double Unit) | |
| Port | Port 1 | Port 2 |
| Operating Frequency (Customized) | 1427~2200 MHz | 2300~2690 MHz |
| Insertion Loss(Typical) | ≤0.3dB | ≤0.3dB |
| Ripple | ≤ 0.2dB | ≤ 0.2dB |
| VSWR | ≤ 1.25 | |
| Isolation | ≥ 50dB | |
| PIM3 | ≤ -155dBc @ 2 x 43dBm | |
| Power Handling | 200W(Avg.), 1000W(Peak) | |
| Impedance | 50Ω | |
| Connector Type | 4.3-10 Female | |
| Application | Indoor or Outdoor(IP65) | |
| Operating Temperature | -20℃ to + 60℃ | |
| Relative Humidity | 5% ~ 95% | |
| DC/AISG Pass-through Method | Auto Sensing | |
| DC/AISG Pass-through Path | Auto Sensing Circuitry Detects DC/AISG Signal Presence and Selects Path | |
| DC/AISG Pass-through, Combiner | Auto Sensing | |
| DC/AISG Pass-through, Demultiplexer | Auto Sensing | |
| Lightning Protection | 10kA,10/350us pulse | |
| Dimensions | 140x120x90mm(Without Connectors) | |
| Weight | 2.5Kg(Double Unit) | |
| Color | Gray | |
| Packing | 1PCS/Box | |
