Frequency RangeB1-B2-B3-B5-B7-B8-B20-B28
Technology2G, 3G, 4G, 5G
Output Power43±2dBm per Band
Maximum Gain55±3dB(MU+RU)
Multi Distributed Antenna System (MDAS)
ATMC00A & ATMB43A: Multi Band Active DAS

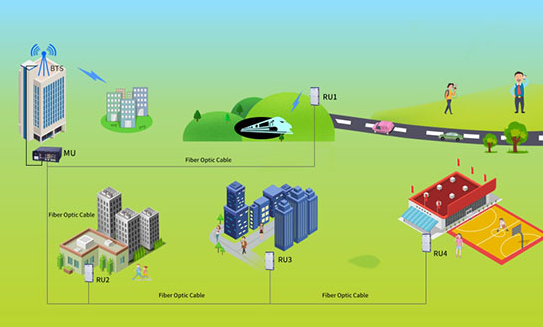

With the development of mobile communication technology, more and more new communication technologies(such as 4G) are being used nowadays. As a result, telecom operators have to run multiple systems simultaneously and provide multi-system services(2G/3G/4G) in one coverage area, resulting in the difficulty of installation and transmission of equipments. For the above mentioned reasons, Multi-Band Active DAS is designed to solve the problems of weak mobile signal in the place that is far away from the Base Transceiver Station(BTS) and has fiber optic cable network underground. The system consists of two parts: Master Unit and Remote Unit. The Master unit captures the BTS signal via direct coupler closed to BTS, then converts it into optic signal and transmits the amplified signal to the Remote Unit via fiber optic cable. The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
1. Aluminum-Alloy casing with IP65 protection for high resistance to dust, water and corrosion.
2. Supporting 5G/4G/3G/2G system.
3. Adopting WDM module to realize long-distance transmission.
4. Tx/Rx control and alarm messages to be transmitted via one fiber optic cable.
5. One MU supporting up to 4 RUs to maximize utilization of fiber optic cable.
6. RJ45 port provides a link to a notebook for local supervision or IP Based NMS(Network Management System) that can remotely supervise DAS’s working status and download operational parameters to the DAS Via Ethernet or LAN.
To expand signal coverage or fill signal blind area where signal is weak or unavailable. Outdoor: Airports, tourism regions, golf courses,tunnels,factories,mining districts,villages,... Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots,... |
ltems | Mu | RU | |
LTE700<E900<E1800&WCDMA2100<E2600 | |||
Frequency Range | Uplink | 703~748MHz&885~915MHz&1710~1775MHz&1920~1980MHz&2500~2570MHz | |
Downlink | 758~803MHz&930~960MHz&1805~1870MHz&2110~2170MHz&2620-2690MHz | ||
Transmission Distance | ≤20km | ||
Maximum Input Power(Non-Destructive) | 10dBm | ||
Maximum RF Output Power(Downlink) | 43±2dBm per Band | ||
Maximum Gain(Cable Access) | 55±3dB(MU+RU) | ||
Gain Adjustment Range | 0~30 dB@ Step of 1 dB | ||
VSWR | ≤1.5 | ||
Noise Figure@1RU Connection | ≤5dB | ||
Gain Flatness | ≤±3dB | ||
Standard | Complies with 3GPP and ETSl | ||
Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz | ||
1GHz~12.75GHz: ≤-30dBm/30kHz | |||
System Delay | ≤ 5us | ||
I/O lmpedance | 50Ω | ||
RF Connector | 5 X N-Female for MU, DIN-Female for RU | ||
Optic Connector | 4 X FC/APC for MU, 1 X LC/UPC for RU | ||
Fiber Optical Type | Single Mode | ||
Optical Output Power | 0±3dBm(1310nm) / -3±3dBm(1550nm) | ||
Optical Receiver Sensitivity | ≥-15dBm | ||
Temperature Range | -25°C~+55℃ | ||
Relative Humidity Range | ≤95%/(Non Condensing) | ||
Power Supply | AC100-240V, 50/60Hz | ||
Dimensions | 483mm x 223mm x 500mm | 980mm x 420mm x 230mm | |
Weight | ≤10kg | ≤50 kg | |
Application | lndoor(IP30) | lndoor or Outdoor(IP65) | |
Local Control | Web Browser GUl Local Via RJ-45 Interface or WiFiI Hotspot | ||
NMS Mode(Optional) | Wireless Modem (3G/4G), IP Connectivity | ||
NMS Function(Optional) | Real-time Alarm for Door Status, Temperature, Power Supply, VSWR, etc; Remote Control Such as Turn On/Off,Increasing/Decreasing Output Power etc; Real-time Status for Output/lnput Power, UL/DL Gain, All Status of DAS etc. |
