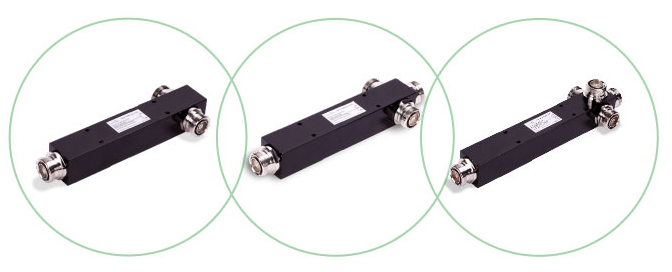

This Action power splitter is an equal power-distribution device and low insertion loss BTS/IBS passive component. It can be applied to indoor or outdoor signal distribution system, featured as dividing one input signal into two or multiple signal outputs with the same amplitude.
Frequency range : 698-6000MHz
Types : 2-way / 3-way / 4-way
| Type | 2-Way | 3-Way | 4-Way |
| Model | AT060102066043F/DF/NF | AT060103066043F/DF/NF | AT060104066043F/DF/NF |
| Frequency Range(Customized) | 698~6000MHz | ||
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.4dB |
| Split Loss | ≤3.0dB | ≤4.8dB | ≤6.0dB |
| Ripple | ≤0.3dB | ≤0.4dB | ≤0.5dB |
| VSWR | ≤1.25 | ≤1.25 | ≤1.30 |
| Impedance | 50Ω | ||
| Power Handling | ≤300W | ||
| PIM3 | ≤-160dBc @2 x43dBm | ||
| Connector Type(Customized) | 4.3-10 Female/DIN Female/N Female | ||
| Operating Temperature Range | -30℃~+75℃ | ||
| Storage Temperature Range | -40℃~+85℃ | ||
| Relative Humidity | 5%~95% | ||
| Application | Indoor or Outdor(IP67) | ||
| Dimensions | 208.5x38x38(mm) | 209x38x38(mm) | 212x38x38(mm) |
| Weight | 0.9Kg | 1.0Kg | 1.1Kg |
