Action Amplifiers are suitable for frequency bands ranging from 20MHz to 6GHz,the output power can be customized from 1 Watts to 200 Watts. The amplifiers utilize the cutting edge Solid-State technologies, such as GaN, LDMOS, with multi-measures, such as advanced broadband RF matching networks and combining technologies(Doherty design),then provide exceptional performance with high gain, high efficiency, wide dynamic range, low distortions, and good linearity. The amplifiers have a variety of applications including Aerospace, Military, Radar, Electronic Warfare, Communication system(Repeater/BDA,RF Jammer, IMSI catcher), SATCOM, EMI/RFI testing, Lab test and measurement, PIM testing and so on. Action Technologies’ ISO9001:2015 quality management system assures consistent performance, high reliability and ruggedness.
Solid-state Class AB design
High gain and high efficiency
High input/output isolation
Ultra-wide band
Compact design and lightweight
Built-in protection and monitoring circuits
Items | Specifications |
Frequency Range | 3400~3800MHz |
Bandwidth | 400MHz |
Output Power | ≥47dBm/50W |
Max Gain | 47±1dB |
Gain Flatness | ≤2dB |
Max Input Power | +10dBm(No Damaged) |
VSWR | Output≤1.5:1(Built in Isolator (Isolation>30 dB)) Input≤1.5 |
Harmonics | <-45dBc |
Startup Time & Off Time | ≤10µs |
Spurious | ≤-36dBm |
Working Voltage | DC+28V |
Working Current | ≤6.5A |
RF Connector | 1XSMA Female for RF IN, 1XN Female for RF OUT |
I/O Interface and Power Supply | DB9-Male 1. Enable (Active Low) (Enable = 0V, Disable = 5V) pull-up @ 5V with 10k ohm; 2. Forward Power Monitor, Log Slope Detector (0.080V/dB); 3. NC 4. Reflected Power Monitor, Log Slope Detector (0.080V/dB); 5. VSWR Alarm; 6&7. VCC+28V; 8&9. GND. |
Impedance | 50Ω |
Working Temperature | -25℃~+55℃ |

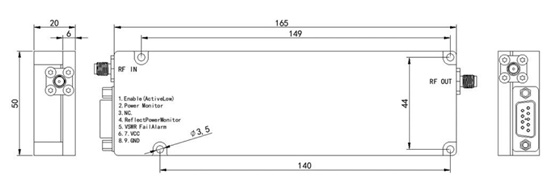

Dimension | 165*50*20mm |
Weight | ≤ 550g |
