Frequency Range1800MHz & 2100MHz
TechnologyDCS & WCDMA
Output Power30/.../43±2dBm (Customized)
Maximum Gain80/.../95±3dB(Customized)

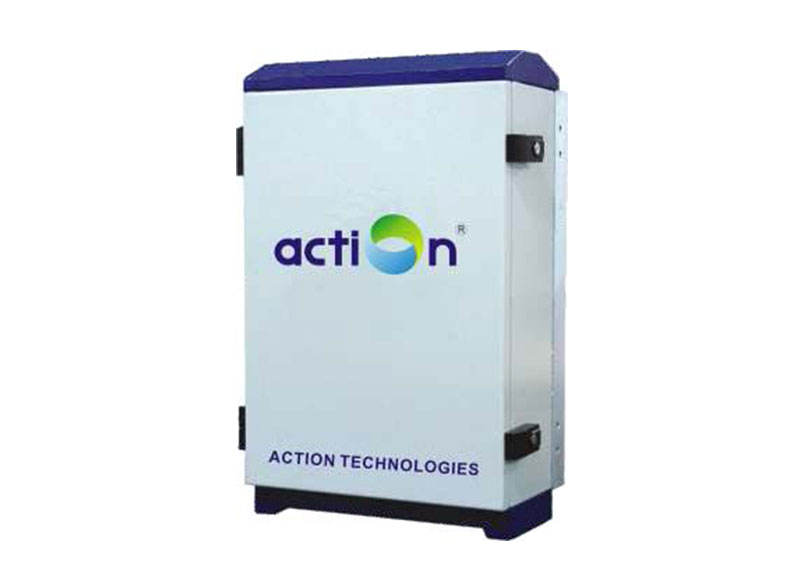

The Dual Band RF Repeater (RFR) is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in Dual band system. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area.
And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
As per operator’s working frequency, two types of RFR are available:
The band-selective function can amplify all signals in the whole band (bandwidth is customized).
The channel-selective function can amplify only the signals transmitted by the customized 1 (up to 4) channel.
1. Aluminum-Alloy casing with IP65 protection for high resistance to dust, water and corrosion.
2. Supporting 5G/4G/3G/2G system
3. Low interference to BTS by adopting linear amplifier with high gain and low noise.
4. Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink.
5. RJ45 port provides a link to a notebook for local supervision or IP Based NMS(Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater Via Ethernet or LAN.
To expand signal coverage or fill signal blind area where signal is weak or unavailable. Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, … Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, … |
Items | GSM850/GSM900 /DCS1800/PCS1900 | WCDMA | |
Frequency Range (Customized) | Uplink | 824~849 MHz/880~915 MHz | 1920-1980 MHz |
1710~1785 MHz/1850~1910 MHz | |||
Downlink | 869~894 MHz /925~960 MHz | 2110-2170 MHz | |
1805~1880 MHz/1930~1990 MHz | |||
Maximum Input Power(Non-Destructive) | 10dBm | ||
Maximum Output Power(Customized) | 43dBm | ||
Maximum Gain | ≥ 85dB | ||
Gain Adjustment Range | 0~31 dB @ step of 1 dB | ||
Voltage Standing Wave Ratio | ≤1.5 | ≤1.4 | |
Noise Figure | ≤5dB | ≤5dB | |
Spurious Emission | Within Working Band | ≤ -15dBm/30kHz | Comply with 3GPP TS 25.106 V6.0.0 |
Out of Working Band (△f > 2.5MHZ) | 9kHz~1GHz: ≤ -36dBm/30kHz | ||
1GHz~12.75GHz:≤-30dBm/30kHz | |||
Third-order Inter-Modulation | ≤ -45dBc / 30kHz (Measured under rated output power) | Comply with 3GPP TS 25.106 V6.0.0 | |
ln-Band Ripple | ≤ 3dB | ≤ 3dB p-p/ 3.84 MHz | |
Peak Code Domain Error (PCDE) | -- | ≤ -35dB | |
ACRR | P≥31 dBm | -- | (Offset 5MHz)≥ 33dB |
P≥31 dBm | (Offset 10MHz)≥ 33dB | ||
P<31 dBm | (Offset 5MHz)≥ 20dB | ||
P<31 dBm | (Offset 10MHz)≥ 20dB | ||
Group Delay Time | ≤5.0us | ||
Out-of-Band Gain | 2.7≤f offset<3.5MHz | -- | ≤60dB |
3.5≤f offset<7.5MHz | ≤45dB | ||
7.5≤f offset<12.5MHz | ≤45dB | ||
12.5≤f offset | ≤30dB | ||
I/O lmpedance | 50Ω | ||
RF Connector | N-Type (Female) / Changeable / bottom of casing | ||
Phase Distortion | -- | 6.1°(RIMS)&≤24.5°(Peak) | |
Error vector Magnitude (EVM) | -- | ≤12.5% | |
Temperature Range | Operation: -25℃~ + 55℃ / Storage: -30℃~ +60℃ | ||
Relative Humidity Range | ≤95% (Non condensing) | ||
Power Supply (Customized) | DC-48V or AC110V or AC220V, 50/60Hz | ||
Power Consumption | ≤300W | ||
Backup Power Supply (Optional) | 4 hours | ||
Application | lndoor or outdoor(IP65) | ||
Dimensions | 500mm×440mm×187mm | ||
Weight | 25kg | ||
Control Connector | USB for local / remote | ||
NMS Monitoring Function(Optional) | Real-time alarm for door status, temperature, power supply, VSWR,etc; Remote control such as turn on/off, increasing/decreasing output power, etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
