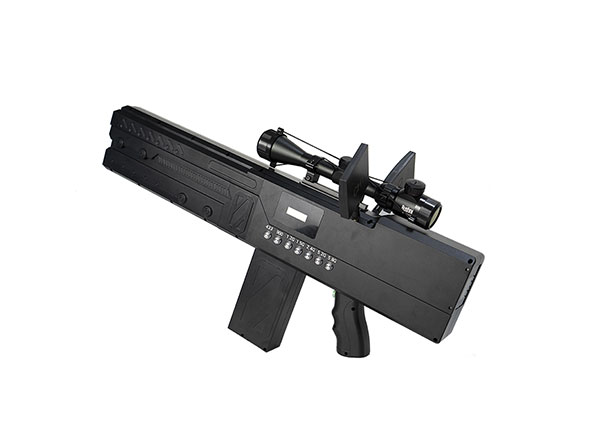

Handheld gun type UAV Drone Jammer,UAV jamming equipment

Handheld gun type UAV Drone Jammer,UAV jamming equipment

Model: ATJ6-120-20

Product Description

With drone sales expected grow exponentially in the near future, and an increasing number and severity of drone incidents occurring daily, Our Company launched Drone Gun to respond to nefarious use of consumer and commercial drones and the resulting need for effective countermeasures to drone intrusions. We aims to help public and private sector customers, where allowed by law, take proactive measures against airborne threats to safety, security, and privacy.


Portable light UAV Drone Jammer, Built-in high gain directional antenna, Built-in 7 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle, Jamming Range (2.0km) can be comprehensive and stable uninterrupted shielding of the 433MHz/900MHz/1.2G/1.5G/2.4G/5.2G and 5.8G bands in the UAV frequency band.


Feature

  • High-gain 18dbi built-in antenna, make use of noise jamming technology, Jamming range up to 2.0KM.

  • High strength fireproof plastic.

  • Have video intercept,forced landing, return,interception function.

  • There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand.

  • Independent design of control switch, aiming at stopping peeping, driving away, and forcing to land.


Application

To avoid the rapidly emerging threat by UAV, our jammer can be used in below recommend places:

Government: Prison, Court, Military, Police, other Law enforcement, etc

Infrastructure: Petrol Station, Oil Depot, Gas Station, Airport, Drug, rehabilitation centers, Security agency, etc

Public&Events: Stadium&Events, Important Meetings, Detention Centers, School, Hospital, etc


Technical Specification

Items

Specifications

Jamming Systems

433MHz&900MHz&1.2G&1.5G&2.4G&5.2G&5.8G

Interference Frequency

420MHz-450MHz

890MHz-940MHz

1100MHz-1300MHz

1550MHz-1620MHz

2400MHz-2500MHz

5150MHz-5250MHz

5700MHz-5900MHz

Detection Radius

1000-2500M

Size

711*292*71MM

Supply Voltage

Charger 220V to DC29.4V

Power Supply Method

Built-in battery 24V (5AH)

Machine Power

140W

Material

High-strength fireproof plastic

Antenna Gain

8dBi-18dBi

Machine Weight

6KG

Operating Temperature

-20°C ~ + 45°C

Directional Antenna

Vertical 45° horizontal 45°

Blocking Medium

Electromagnetic wave
