Single Band Bandwidth Adjustable Pico Digital Repeater

Model: ATLS20E2

Frequency Range900MHz / 1800MHz / 2100MHz / 2600MHz / 3800MHz (Customized)

Technology2G, 3G, 4G, 5G

Output Power20±2dBm

Maximum Gain70±3dB

Video

Product Description

800MHz/900MHz/1800MHz/2100MHz/2600MHz Single Band Bandwidth Adjustable Digital Pico Repeater

The Digital Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.

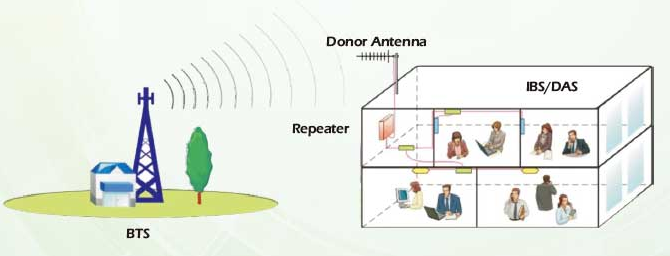

The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Feature

1. Two signal ports with full duplex design

2. Supporting 5G/4G/3G/2G system

3. Linear power amplification to effectively suppress inter-modulation and spurious emission

4. Smart Automatic Level Control (ALC) to ensure stable and continuously adjustable output level

5. Auto Isolation check between service and donor antennas

6. Smart Mode to auto-adjust gain according to the isolation and signal level received by donor site

7. Simple installation with external AC/DC adapter

Application

To expand signal coverage or fill signal blind area where BTS GSM signal is weak or unavailable.

Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots,...

Technical Specification

Items		Specifications
System		5G/4G/3G/2G
Frequency Range	Uplink	832~862MHz/880~915MHz/1710~1785MHz/1920~1980MHz/2500~2570MHz
	Downlink	791~821MHz/925~960MHz/1805~188OMHz/2110~2170MHz/2620~2690MIHz
Working Bandwidth(Digital Filter)		2 Sub-bands,0.2-25MHz Variable per Sub-Band
Maximum Gain		75±3dB
Mlaximum Output Power		20±2dBm
AGC&MGC Range		≥20dB
Maximum input Powver(Non-Destructive)		≤0dB
Standard		Complies with 3GPP and ETSl
Spurious Emission		9KHz-1GHz:≤-36dBm/30KHz
		1GHz-12.75GHz:≤-30dBm/30KHz
VSWR		≤2
Noise Figure		≤6dB
System Delay		≤8us
I/O lmpedance		50Ω
RF Connector		N-Type (Female)
Power Consumption		≤30W
Power Supply		lnput AC100~240V, Output 9V/5A
Dimensions		318x265x68mm
Weight		≤7.5kg
Alarm Monitoring System		Alarm for Uplink Self-Oscillation
lsolation Detection		lsolation Check During Boot Time
LED Indicator		Power Supply, Alarm, State
Operating Temperature		-10~+50℃
Application		lndoor(IP30)
Relative Humidity Range		≤95%(Non Condensing)
Local Control		Web Browser GUI Local Via RJ-45 Interface or WiFi Hotspot
NMS Mode(Optional)		Wireless Modem (3G/4G), IP Connectivity
