High Power Portable Military Signal Jammer, Wireless Signal Jammer AC 220V

High Power Portable Military Signal Jammer, Wireless Signal Jammer AC 220V

VBE-8P

Feature

  • Using UHF broadband interference technology.

  • High effective power (channel power) and large interference radius.

  • Imported device, slow start circuit design can avoid the mechanical switch fire phenomenon, high integration, stable work.

  • Perfect self-protection function. When the device is warned of overheating fault, the shielding device will automatically shut down the failed module to avoid the damage of the shielding device.



1. System accessory table

NoNameQtyUnitRemark

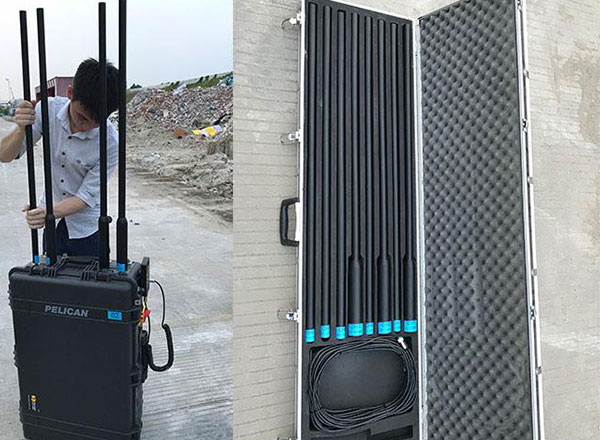

1Antenna8pcsOmnidirectional
2Wire controller1pcs
3Line controller control line1pcsStandard
4Spare Line controller control line

1

pcs20M
5Power Line1pcsStandard
6Hand-pull Box1pcsSystem Accessary


2. Omnidirectional Antenna Parameter List


Input impedence50Ω
standing wave≤1.8
Gain3dBi
Power Capacity150W
Direction of PolarizationVertical Polarization

Cross Modulation

<-107dBm

Interface Type

7/16 or N-K

Lightning Protection

Direct Grounding

Wind Protectionnn

60(m/s)

Pole Diameter

Φ25/40(mm)


Application

Prisons, Recording Studios, Banks, Contract Tendering Rooms, Churches, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, etc.

Technical Specification

ChannelWorking FrequencyOutput Power(±3dBm)
CH120-100 MHz44.77dBm
CH2100-300MHz44.77dBm
CH3300-500MHz47dBm
CH4800-1000MHz47dBm
CH51520- 1670 MHz48.75dBm
CH61800-2000 MHz48.75dBm
CH72000-2200 MHz48.75dBm
CH82400-2690 MHz48.75dBm
Power: AC 220V

Power Consumption : 1000W

Mainframe weight: 53.6Kg Size(L×W×H):800×500×310 mm

Humidity: 5%-95% Running Temperature: -35 to +80 ℃



Product Usage:
