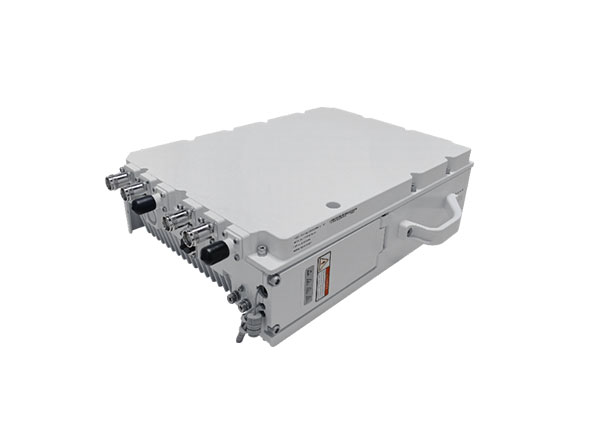

Outdoor LTE Small Cell

Outdoor LTE Small Cell

Model: ATLTE-S46M2-1

Product Description

FDD-LTE Small cell is an outdoor Long-Term Evolution (LTE) product that operates in Frequency Division Duplexing (FDD) mode,it is an eNodeB, which is connected to the Carrier’s EPC core network through the IP transmission network. It provides 4G signal of FDD-LTE and provides users with high-speed broadband wireless access to the Internet using 2*20W output power (2x2 MIMO with 20W output each channel). This unit is compact, lightweight, and easy to deploy, it is widely used by Carriers.

Through self-organization/optimization (SON) technology, broadband backhaul technology and multi-interface combination algorithms, it can realize self-configuration, management, and optimization. It is a true plug-and-play device; it also supports multiple switching algorithms and technical means , to achieve seamless connection with the macro network, easily solve 4G network coverage, capacity, quality and other issues, and improve user perception.



Feature

  • FDD-LTE coverage, support Band28, and other frequency bands can be customized according to user needs

  • Support FDD-LTE channel bandwidth of 20MHz/15MHz/10MHz/5MHz

  • Complies with 3GPP Release 9 standards

  • Peak rate (up to) DL 150 Mbps, UL 50 Mbps @ 20 MHz

  • 256 concurrent users

  • Adopting gigabit adaptive network interface and any IP based backhaul can be used, including public transmission protected by Internet Protocol Security(IPSec)

  • Support remote management, adopt TR069 protocol, unified network management operation and maintenance

  • Indication for equipment abnormal

  • Support mobility management functions such as handover and reselection in the system

  • Support inter-network collaboration to improve user perception and system capacity, support VoLTE and other LTE services


Application

The Small cell is connected to the Carrier’s core network through fixed-line broadband, providing users with FDD-LTE services, quickly providing FDD-LTE 4G signals, and solving the problem of low coverage of FDD-LTE signals; Achieving accuracy and depth coverage, improving the network's ability to support data services; absorbing hotspot traffic to offload macro network data.

Technical Specification

Items

Specifications

System

FDD-LTE

Working Frequency   Range

Band3/5/8/13/20/28

Channel Bandwidth

5/10/15/20MHz

Max User Number

256 Concurrent   Users

Maximum   Output Power

46dBm(2x2   MIMO)

Receive   Reference Sensitivity

≤-102dBm

Peak   Rate (up to)

20MHz: DL 150Mbps, UL 50Mbps

10MHz: DL 75Mbps, UL 25Mbps

QoS Control

3GPP standard QCI

Modulation

DL:  QPSK,   16QAM, 64QAM

UL:  QPSK,   16QAM

SON

Automatic setup

 Automatic   Neighbor Relation (ANR)

 PCI   confliction detection

UL Interference   Detection

Supported

I/O   Impedance

50Ω

RF   Connector

2xDIN-Female

Power   Supply

- 48V   DC, with AC adaptor

Dimensions

430mmx275mmx175mm

Weight

≤16kg

Mounting

Wall or   Pole Mounting

Operating   Temperature

-5°C ~ +40   °C

Storage   Temperature

-20°C ~   +65 °C

Application

Outdoor(IP65)

Relative Humidity Range

≤95%(Non   Condensing)
