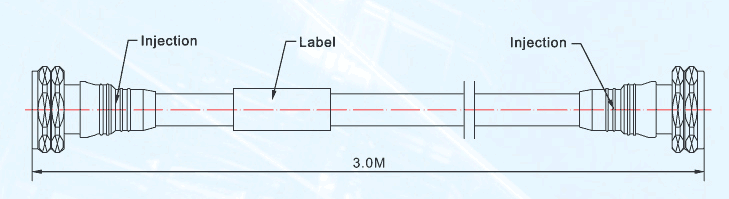

1/2” Super Flexible Jumper Cable
Thinner and more flexible jumper cables are used for connecting antennas, power splitters and other components. It is more efficient as connectors are equipped with the either side of the cable, and the length is fixed.
Length: customized.
Impedance: 50Ω.
Frequency range: 3.0GHz.
Dielectric strength: 2.5KV.
| Model | AT03DM030012SDM |
| Length | 3.0m |
| Impedance | 50Ω |
| Insulation Resistance | ≥5000MΩ·km |
| Dielectric Strength | 2.5kV |
| Frequency Range | ≤3.0GHz |
| Operating Voltage | 1.5kV |
| Attenuation(dB) | |
| 450MHz | 0.29 |
| 900MHz | 0.40 |
| 1800MHz | 0.60 |
| 2400MHz | 0.69 |
| VSWR | |
| 0.8~1.0GHz | 1.13 |
| 1.7~2.5GHz | 1.15 |
